| Chemical |
Range |
Tube
# |
Tests
per Box |
Shelf
Life (max)* |
|
|
| Acetaldehyde |
(0.004-1
%v) |
133A |
10 |
1 Year † |
|
|
| Acetaldehyde |
(5-140 ppm) |
133SB |
10 |
2 Years † |
|
|
|
|
|
|
|
|
|
| Acetic Acid |
(1-50 ppm) |
216S |
10 |
3 Years |
|
|
|
|
|
|
|
|
|
| Acetone |
(0.1-5.0
%v) |
102SA |
10 |
3 Years |
|
|
| Acetone |
(0.01-4.0
%v) |
102SC |
10 |
1 Year † |
|
|
| Acetone |
(40-5000
ppm) |
102SD |
10 |
2 Years |
|
|
|
|
|
|
|
|
|
| Acetylene |
(50-1000
ppm) |
101S |
10 |
3 Years |
|
|
|
|
|
|
|
|
|
Acetylene
&
Ethylene |
(20-2000 ppm)
&
(200-2000 ppm ) |
280S |
5 |
1 Year |
|
|
|
|
|
|
|
|
|
| Acrolein |
(0.005-1.8
%v) |
136 |
10 |
1 Year † |
|
|
|
|
|
|
|
|
|
| Acrylonitrile |
(0.1-3.5
%v) |
128SA |
10 |
3 Years |
|
|
| Acrylonitrile |
(10-500 ppm) |
128SB |
|
|
|
|
| Acrylonitrile |
(1-120 ppm) |
128SC |
5 |
1 Year † |
|
|
| Acrylonitrile |
(0.25-20
ppm) |
128SD |
5 |
1 Year † |
|
|
| HCN Scrubber Tube for 128SD |
|
128SDX |
10 |
|
|
|
|
|
|
|
|
|
|
| Allyl Alcohol & Methyl Methacrylate |
(10-160 ppm) |
184S |
10 |
2 Years |
|
|
|
|
|
|
|
|
|
| Ammonia |
(0.5-10.0
%v) |
105SA |
10 |
3 Years |
|
|
| Ammonia |
(50-900 ppm) |
105SB |
10 |
3 Years |
|
|
| Ammonia |
(5-260 ppm) |
105SC |
10 |
3 Years |
|
|
| Ammonia |
(0.2-20 ppm) |
105SD |
10 |
3 Years |
|
|
| Ammonia |
(0.5-30 %v) |
105SH |
10 |
3 Years |
|
|
| Ammonia |
(0.1-1.0
%v) |
105SM |
10 |
2 years |
|
|
|
|
|
|
|
|
|
| Aniline |
(1-30 ppm) |
181S |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Arsine |
(5-160 ppm) |
140SA |
10 |
2 Years |
|
|
| Arsine & Phosphine |
(0.05-2.0 ppm) |
121U |
10 |
2 Years |
|
|
|
|
| Benzene-in presence of Hydrocarbons |
(5-200 ppm) |
118SB |
5 |
2 Years |
|
|
| Benzene |
(1-100 ppm) |
118SC |
10 |
2 Years |
|
|
| Benzene |
(0.1-75 ppm) |
118SD |
5 |
2 Years |
|
|
| Benzene -in presence of Hydrocarbons |
(0.2-80 ppm) |
118SE |
10 |
1 Year |
|
|
| |
|
|
|
|
|
|
| Bromine |
(1-20 ppm) |
114 |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Butadiene |
(0.03-2.6 %v) |
168SA |
10 |
3 Years |
|
|
| Butadiene |
(30-600 ppm) |
168SB |
10 |
3 Years |
|
|
| Butadiene |
(2.5-100 ppm) |
168SC |
10 |
1 Year |
|
|
| Butadiene |
(0.5-10 ppm) |
168SD |
10 |
1 Year |
|
|
| |
|
|
|
|
|
|
| n-Butane |
(0.05-0.6 %v) |
221SA |
10 |
3 Years |
|
|
| |
|
|
|
|
|
|
| 1-Butanol |
(5-100 ppm) |
190UC |
10 |
3 Years |
|
|
| 2-Butanol |
(4-300 ppm) |
189U |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Butyl Acetate |
(0.01-1.0%) |
139SB |
10 |
3 Years |
|
|
| Butyl Acetate |
(10-400 ppm) |
138U |
10 |
1 Year |
|
|
| |
|
|
|
|
|
|
| Ethyl & Butyl & Isobutyl acrylate |
(5-60 ppm) |
211U |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Butyl Cellosolve |
(10-1,000 ppm) |
190U |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Tert-Butyl Mercaptan |
(1-10 ppm) |
130U |
10 |
2 Years |
|
|
|
| Carbon Dioxide |
(100-7000 ppm / 0.03-0.7 %v) |
126B |
10 |
2 Years |
|
|
| Carbon Dioxide |
(0.1-2.6 %v) |
126SA |
10 |
2 Years |
|
|
| Carbon Dioxide |
(0.05-1.0 %v) |
126SB |
10 |
2 Years |
|
|
| Carbon Dioxide |
(100-4000 ppm) |
126SF |
10 |
2 Years |
|
|
| Carbon Dioxide |
(0.02-1.4%) |
126SG |
10 |
1 Year |
|
|
| Carbon Dioxide |
(1.0-20.0 %v) |
126SH |
10 |
2 Years |
|
|
| Carbon Dioxide |
(5-50 %v) |
126UH |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Carbon Disulfide |
(30-500 ppm) |
141SA |
5 |
2 Years † |
|
|
| Carbon Disulfide |
(0.8-50 ppm) |
141SB |
5 |
3 Years † |
|
|
| |
|
|
|
|
|
|
| Carbon Monoxide |
(10-250 ppm) |
106S |
10 |
3 Years |
|
|
| Carbon Monoxide |
(5-1000 ppm) |
106SA |
10 |
3 Years |
|
|
| Carbon Monoxide |
(1-50 ppm) |
106SC |
10 |
1 Year |
|
|
| Carbon Monoxide |
(0.1-2.0 %v) |
106SH |
10 |
1 Year |
|
|
| Carbon Monoxide |
(0.1-20 %v) |
106UH |
10 |
3 Years |
|
|
| |
|
|
|
|
|
|
| Carbon Tetrachloride |
(0.5-60 ppm) |
147S |
5 |
1 Year |
|
|
| |
|
|
|
|
|
|
| Carbonyl Sulfide |
(5-60 ppm) |
239S |
5 |
3 Years |
|
|
| |
|
|
|
|
|
|
| Chlorine |
(1-40 ppm) |
109SA |
10 |
2 Years |
|
|
| Chlorine |
(0.1-10 ppm) |
109SB |
10 |
2 Years |
|
|
| Chlorine |
(0.05-2 ppm) |
109U |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Chlorine Dioxide |
(1-20 ppm) |
116 |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Chlorobenzene |
(1-140 ppm) |
178SB |
5 |
1 Year |
|
|
| |
|
|
|
|
|
|
| Chloroform |
(23-500 ppm) |
152S |
5 |
2 Years † |
|
|
| |
|
|
|
|
|
|
| Chloropicrin |
(0.05ﾐ16 ppm) |
172S |
5 |
1 Year † |
|
|
| |
|
|
|
|
|
|
| Chloroprene |
(0.5-20 ppm) |
169S |
5 |
3 Years |
|
|
| |
|
|
|
|
|
|
| Cresol & Phenol |
(0.5-25 ppm) |
183U |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Cyclohexane |
(0.01-0.6 %v) |
115S |
10 |
3 Years |
|
|
| |
|
|
|
|
|
|
| Cyclohexanol |
(5-500 ppm) |
206U |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Cyclohexanone |
(2-100 ppm) |
197U |
10 |
3 Years |
|
|
|
|
| Diacetone Alcohol |
(10-250 ppm) |
190UC |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Diborane |
(0.02-5 ppm) |
242S |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| o-Dichlorobenzene |
(5-100 ppm) |
214S |
10 |
2 Years |
|
|
| p-Dichlorobenzene |
(10-150 ppm) |
215S |
10 |
1 Year † |
|
|
| |
|
|
|
|
|
|
| 1,1-Dichloroethane |
(10-160 ppm) |
235S |
5 |
1 Year † |
|
|
| 1,2-Dichloroethane |
(5-50 ppm) |
230S |
5 |
1 Year † |
|
|
| |
|
|
|
|
|
|
| 2,2-Dichloroethyl Ether |
(2-30 ppm) |
223S |
5 |
1 Year |
|
|
| |
|
|
|
|
|
|
| 1,2-Dichloroethylene |
(5-400 ppm) |
145S |
5 |
1 Year † |
|
|
| |
|
|
|
|
|
|
| Dichloromethane |
(10-1000 ppm) |
180S |
5 |
2 Years † |
|
|
| |
|
|
|
|
|
|
| 1,3-Dichloropropane |
(10-500 ppm) |
194S |
5 |
1 Year † |
|
|
| |
|
|
|
|
|
|
| Diethyl & Trimethyl |
Amine (1-20 ppm) |
222S |
10 |
3 Years |
|
|
| |
|
|
|
|
|
|
| Diethyl Ether (Ether) |
(0.04-1.4 %v) |
107SA |
10 |
3 Years |
|
|
| Diethyl Ether (Ether) |
(20-400 ppm) |
107U |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Dimethyl & Ethyl & Methyl amine |
(1-20 ppm) |
227S |
10 |
3 Years |
|
|
| |
|
|
|
|
|
|
| N,N-Dimethyl Formamide |
(1-30 ppm) |
196S |
|
|
|
|
| |
|
|
|
|
|
|
| Dimethyl Ether |
(0.01-1.2 %v) |
123S |
10 |
3 Years |
|
|
| |
|
|
|
|
|
|
| N,N-Dimethylacetamide |
(5-70 ppm) |
229S |
|
|
|
|
| |
|
|
|
|
|
|
| Dioxane |
(0.05-2.5 %v) |
139SB |
10 |
3 Years |
|
|
| Dioxane |
(20-500 ppm) |
119UC |
10 |
2 Years |
|
|
|
|
| Epichlorohydrin |
(5-50 ppm) |
192S |
5 |
1 Years |
|
|
| |
|
|
|
|
|
|
| Ethyl Acetate |
(0.1-5.0 %v) |
111SA |
10 |
3 Years |
|
|
| Ethyl Acetate |
(20-1000 ppm) |
111U |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Ethyl acrylate |
(5-60 ppm) |
211UC |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Ethyl Alcohol |
(0.05-5.0 %v) |
104SA |
10 |
3 Years |
|
|
| |
|
|
|
|
|
|
| Ethyl & Methyl amine |
(1-20 ppm) |
227S |
10 |
3 Years |
|
|
| |
|
|
|
|
|
|
| Ethyl Benzene |
(10-500 ppm) |
179S |
10 |
1.5 Years |
|
|
| |
|
|
|
|
|
|
| Ethyl & Methyl Cellosolve |
(5-500 ppm) |
190U |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Ethyl Cellosolve Acetate |
(5-150 ppm) |
190UC |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Ethylene |
(0.1-100 ppm) |
108B |
10 |
3 Years |
|
|
| Ethylene |
(20-1200 ppm) |
108SB |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Ethylene Dibromide |
(1-50 ppm) |
166S |
5 |
1 Year † |
|
|
| |
|
|
|
|
|
|
| Ethylene Glycol |
(20-250 mg/M3) |
232SA |
5 |
2 Years |
|
|
| Ethylene Glycol |
(3-40 mg/M3) |
232SB |
5 |
3 Years |
|
|
| |
|
|
|
|
|
|
| Ethylene Oxide |
(0.01-4 %v) |
122SA |
10 |
3 Years |
|
|
| Ethylene Oxide |
(5-100 ppm) |
122SM |
5 |
2 Years |
|
|
| Ethylene Oxide |
(1-15 ppm) |
122SC |
5 |
3 Years |
|
|
| Ethylene Oxide |
(0.1-14 ppm) |
122SD |
|
|
|
|
| |
|
|
|
|
|
|
| Ethyl Mercaptan |
(1-160 ppm) |
165SA |
10 |
2 Years |
|
|
| Ethyl Mercaptan [in LP Gas] |
(2.5-80 ppm) |
165SB |
10 |
2 Years |
|
|
| Ethyl Mercaptans |
(0.5-10 ppm) |
130U |
10 |
2 Years |
|
|
|
|
| Formaldehyde |
(20-1500 ppm) |
171SA |
5 |
2 Years † |
|
|
| Formaldehyde |
(1-35 ppm) |
171SB |
5 |
3 Years |
|
|
| Formaldehyde |
(0.05-4 ppm) |
171SC |
10 |
1 Year † |
|
|
| |
|
|
|
|
|
|
| Formic Acid |
(1-50 ppm) |
216S |
10 |
3 Years |
|
|
| |
|
|
|
|
|
|
| Furan |
(0.2-2.0%)(0.01-0.9%) |
122SAC |
10 |
3 Years |
|
|
| |
|
|
|
|
|
|
| Furfural |
(2-60 ppm) |
190UC |
10 |
3 Years |
|
|
| |
|
|
|
|
|
|
| Furfuryl Alcohol |
(2-25 ppm) |
238S |
10 |
1 Year |
|
|
|
|
| Gasoline |
(0.05-0.6 %v) |
110S |
10 |
3 Years |
|
|
| |
|
|
|
|
|
|
| General Hydrocarbons |
(50-1400 ppm) |
187S |
10 |
2 Years |
|
|
|
|
| Heptane |
(100-2,000 ppm) |
113SBC |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| n-Hexane |
(0.05-0.6 %v) |
113SA |
10 |
3 Years |
|
|
| n-Hexane |
(50-1400 ppm) |
113SB |
10 |
2 Years |
|
|
| n-Hexane |
(5-800 ppm) |
113SC |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Hydrazine |
(0.05-10 ppm) |
219S |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Hydrocarbon [Arson Tube] |
(Qualitative) |
290P2 |
|
|
|
|
| |
|
|
|
|
|
|
| Hydrogen |
(0.05-0.8 %v) |
137U |
10 |
3 Years |
|
|
| |
|
|
|
|
|
|
| Hydrogen Chloride |
(20-1200 ppm) |
173SA |
5 |
2 Years |
|
|
| Hydrogen Chloride |
(0.4-40 ppm) |
173SB |
5 |
3 Years |
|
|
| |
|
|
|
|
|
|
| Hydrogen Cyanide |
(0.01-3.0 %v) |
112SA |
10 |
3 Years |
|
|
| Hydrogen Cyanide |
(0.5-100 ppm) |
112SB |
10 |
2 Years † |
|
|
| Hydrogen Cyanide |
(0.3-8 ppm) |
112SC |
10 |
2 Years † |
|
|
| |
|
|
|
|
|
|
| Hydrogen Fluoride |
(0.25-30 ppm) |
156S |
10 |
3 Years |
|
|
| |
|
|
|
|
|
|
| Hydrogen Peroxide |
(0.5-10 ppm) |
247S |
|
|
|
|
| |
|
|
|
|
|
|
| Hydrogen Selenide |
(1-600 ppm) |
167S |
10 |
1 Year |
|
|
| |
|
|
|
|
|
|
| Hydrogen Sulfide |
(0.75-300 ppm) |
120SB |
10 |
3 Years |
|
|
| Hydrogen Sulfide - in presence of Sulfur Dioxide |
(0.005-0.16 %v) |
120SC |
10 |
3 Years |
|
|
| Hydrogen Sulfide |
(1-60 ppm) |
120SD |
10 |
3 Years |
|
|
| Hydrogen Sulfide |
(0.5-40 ppm) |
120SE |
10 |
2 Years |
|
|
| Hydrogen Sulfide |
(25-2000 ppm) |
120SF |
10 |
3 Years |
|
|
| Hydrogen Sulfide |
(0.1-4.0 %v) |
120SH |
10 |
3 Years |
|
|
| Hydrogen Sulfide |
(0.05-1.2 %v) |
120SM |
10 |
2 Years |
|
|
| Hydrogen Sulfide |
(0.2-6.0 ppm) |
120U |
10 |
2 Years |
|
|
| Hydrogen Sulfide |
(0.25-4 gr/100CF) |
120GT |
10 |
3 Years |
|
|
| Hydrogen Sulfide |
(0.025-0.4 gr/100CF) |
120GR |
10 |
2 Years |
|
|
| Hydrogen Sulfide |
(2-20 %v) |
120UH |
10 |
3 Years |
|
|
| Hydrogen Sulfide |
(2.5-40 %v) |
120UT |
10 |
3 Years |
|
|
| |
|
|
|
|
|
|
| Hydrogen Sulfide & Mercaptans |
(1-30 ppm) |
282S |
5 |
2 Years |
|
|
|
|
| Inorganic gases |
(qualitative) |
131 |
|
|
|
|
| |
|
|
|
|
|
|
| Isobutane |
50-1,200 ppm) |
113SB |
10 |
3 Years |
|
|
| |
|
|
|
|
|
|
| Isobutyl Acetate |
(0.01-1.4%) |
139SB |
10 |
3 Years |
|
|
| |
|
|
|
|
|
|
| Isobutyl Acetate |
(10-400 ppm) |
153U |
10 |
1 Year |
|
|
| |
|
|
|
|
|
|
| Isobutyl Acrylate |
(5-60 ppm) |
211U |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Isobutyl Alcohol |
(5-100 ppm) |
208U |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Isoamyl Acetate |
(10-400 ppm) |
188U |
10 |
1 Year |
|
|
| |
|
|
|
|
|
|
| Isopentyl Alcohol |
(5-100 ppm) |
209U |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Isoprene |
(1-16 ppm) |
190U |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Isopropyl Acetate |
(0.01-1.2%) |
139SB |
10 |
3 Years |
|
|
| |
|
|
|
|
|
|
| Isopropyl Acetate |
(20-1000 ppm) |
111U |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Isopropyl Alcohol |
(0.05-2.5%) |
122SA |
10 |
3 Years |
|
|
| Isopropyl Alcohol |
(20-1200 ppm) |
150U |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Isopropyl Mercaptans |
(0.5-10 ppm) |
130U |
10 |
2 Years |
|
|
|
|
| Mercury Vapor |
(0.1-10 mg/M3) |
142S |
10 |
3 Years |
|
|
| |
|
|
|
|
|
|
| Mesityl Oxide |
(5-100 ppm) |
190U |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Methyl Acetate |
(0.01-3.0%) |
111SA |
10 |
3 Years |
|
|
| |
|
|
|
|
|
|
| Methyl Acrylate |
(5-60 ppm) |
211U |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Methyl Alcohol (Methanol) |
(0.05-6.0 %v) |
119SA |
10 |
3 Years |
|
|
| Methyl Alcohol (Methanol) |
(20-1000 ppm) |
119U |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Methyl Amine |
(1-20 ppm) |
227S |
10 |
3 Years |
|
|
| |
|
|
|
|
|
|
| Methyl Bromide |
(10-500 ppm) |
157SA |
5 |
3 Years † |
|
|
| Methyl Bromide |
(0.4-80 ppm) |
157SB |
5 |
3 Years † |
|
|
| |
|
|
|
|
|
|
| Methyl Cellosolve |
(5-500 ppm) |
190U |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Methyl Chloroform (1,1,1-Trichloroethane) |
(15-400 ppm) |
160S |
5 |
3 Years † |
|
|
| |
|
|
|
|
|
|
| Methyl Cyclohexane |
(2-100 ppm) |
198U |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Methyl Cyclohexanol |
(5-200 ppm) |
199U |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Methyl Ethyl Ketone |
(0.05-5.0%v) |
122SAC |
10 |
3 Years |
|
|
| Methyl Ethyl Ketone |
(0.01-1.4 %v) |
139SB |
10 |
3 Years |
|
|
| Methyl Ethyl Ketone |
(20-1500 ppm) |
139U |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Methyl Iodide |
(5-40 ppm) |
176S |
5 |
8 Months |
|
|
| |
|
|
|
|
|
|
| Methyl Isobutyl Ketone |
(0.01-0.6%v) |
122SA |
10 |
3 Years |
|
|
| Methyl Isobutyl ketone |
(5-300 ppm) |
155U |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Methyl Mercaptan |
(5-140 ppm) |
164SA |
10 |
2 Years |
|
|
| Methyl Mercaptan |
(50-2400 ppm) |
164SH |
10 |
3 Years |
|
|
| |
|
|
|
|
|
|
| Methyl Mercaptan |
(0.05-10 ppm) |
130U |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Methyl Methacrylate |
(10-160 ppm) |
184S |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Methyl Styrene |
(10-500 ppm) |
193S |
10 |
3 Years |
|
|
| |
|
|
|
|
|
|
| Monoethanol Amine |
(0.5-50 ppm) |
224SA |
10 |
2 Years |
|
|
|
|
| Naphthalene |
(10-100 ppm) |
153U |
10 |
1 Year |
|
|
| |
|
|
|
|
|
|
| Nickel Carbonyl |
(20-700 ppm) |
129 |
10 |
6 Months |
|
|
| |
|
|
|
|
|
|
| Nitric Acid Vapor |
(1-20 ppm) |
233S |
10 |
1 Year † |
|
|
| |
|
|
|
|
|
|
| Nitrogen Dioxide |
(20-1000 ppm) |
117SA |
10 |
3 Years |
|
|
| Nitrogen Dioxide |
(0.5-30 ppm) |
117SB |
10 |
1 Year |
|
|
| Nitrogen Dioxide |
(0.1-1.0 ppm) |
117SD |
10 |
1.5 Years |
|
|
| |
|
|
|
|
|
|
| Nitric Oxide & NO2 - separately measured |
(NO: 10-300 ppm, NO2: 1-40 ppm) |
174A |
10 |
2 Years |
|
|
| Nitric Oxide & NO2 - separately measured (flue
gas kit version) |
(NO: 10-300 ppm, NO2: 1-40 ppm) |
174B |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Nitrogen Oxides |
(20-250 ppm) |
175SA |
10 |
1 Year |
|
|
| Nitrogen Oxides |
(100-2500 ppm) |
175SH |
10 |
1 Year |
|
|
| Nitrogen Oxides |
(0.5-30 ppm) |
175U |
10 |
3 Years † |
|
|
| |
|
|
|
|
|
|
| N,N-Dimethyl Acetamide |
(5-70 ppm) |
229S |
10 |
1 Year |
|
|
| |
|
|
|
|
|
|
| N,N-Dimethyl Formamide |
(1-30 ppm) |
196S |
10 |
2 Years |
|
|
|
|
| Organic Compounds |
(5-2500 ppm) |
186 |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Organic gases |
(qualitative) |
186B |
|
|
|
|
| |
|
|
|
|
|
|
| Oxygen |
(1.5-24 %v) |
159SC |
5 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Oxygen & Carbon Dioxide |
(2-10 %v / 1-20 %v) |
281S |
5 |
1.5 Years |
|
|
| |
|
|
|
|
|
|
| Ozone |
(50-1000 ppm) |
182SA |
10 |
2 Years |
|
|
| Ozone |
(2.5-100 ppm) |
182SB |
10 |
2 Years |
|
|
| Ozone |
(0.025-3.0 ppm) |
182U |
10 |
2 Years |
|
|
|
|
| Pentane |
(50-1,000 ppm) |
113SB |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Pentyl Acetate |
(10-200 ppm) |
210U |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Phenol & Cresol |
(0.5-25 ppm) |
183U |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Phosgene |
(0.1-20 ppm) |
146S |
10 |
1 Year † |
|
|
| |
|
|
|
|
|
|
| Phosphine |
(20-700 ppm) |
121SC |
10 |
3 Years |
|
|
| Phosphine |
(0.25-20 ppm) |
121SD |
10 |
1 Year |
|
|
| Phosphine |
(10-3,200 ppm) |
121SH |
10 |
1 Year |
|
|
| |
|
|
|
|
|
|
| Propane |
(0.02-0.5 %v) |
125SA |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Propyl Acetate |
(20-1000 ppm) |
151U |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Propylene |
(50-1000 ppm) |
185S |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Propylene Oxide |
(0.05-5.0 %v) |
163SA |
10 |
3 Years |
|
|
| |
|
|
|
|
|
|
| n-Propyl Mercaptan |
(0.5-10 ppm) |
130U |
10 |
2 Years |
|
|
|
|
| Silane |
(0.5-50 ppm) |
240S |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Styrene |
(2.5-300 ppm) |
158S |
10 |
3 Years |
|
|
| Styrene |
(1-100 ppm) |
158SB |
|
|
|
|
| |
|
|
|
|
|
|
| Sulfur Dioxide |
(0.1-3.0 %v) |
103SA |
10 |
3 Years |
|
|
| Sulfur Dioxide |
(0.02-0.3 %v) |
103SB |
10 |
3 years |
|
|
| Sulfur Dioxide |
(20-300 ppm) |
103SC |
10 |
2 Years |
|
|
| Sulfur Dioxide |
(1-60 ppm) |
103SD |
10 |
3 Years |
|
|
| Sulfur Dioxide |
(0.25-10 ppm) |
103SE |
10 |
1 Year † |
|
|
| Sulfur Dioxide (in flue gas) |
(0.02-0.3 %v) |
103SF |
5 |
3 Years |
|
|
| |
|
|
|
|
|
|
| Sulfuric Acid |
(0.5-5 mg/M3) |
244U |
10 |
1 Year † |
|
|
|
|
| Trichloroethylene |
(5-300 ppm) |
134SA |
10 |
2 Years † |
|
|
| Trichloroethylene |
(0.2-16 ppm) |
134SB |
10 |
1 Year † |
|
|
| Trichloroethylene |
(0.05-2 %v) |
134SH |
5 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Tetraethoxysilane |
(5-200 ppm) |
243U |
10 |
3 Years |
|
|
| |
|
|
|
|
|
|
| Tetrahydrofuran |
(0.2-3.0%v) |
102SA |
10 |
3 Years |
|
|
| Tetrahydrofuran |
(20-400 ppm) |
162U |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Toluene |
(10-500 ppm) |
124SA |
10 |
3 Years |
|
|
| Toluene |
(2-100 ppm) |
124SB |
10 |
3 Years |
|
|
| Toluene |
(100-3000 ppm) |
124SH |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| 1,1,2-Trichloroethane |
(10-100 ppm) |
236S |
5 |
1 Year † |
|
|
| |
|
|
|
|
|
|
| Tetrachloroethylene (Perchloroethylene) |
(5-300 ppm) |
135SA |
10 |
2 Years † |
|
|
| Tetrachloroethylene |
(0.2-10 ppm) |
135SB |
10 |
1 Year † |
|
|
| Tetrachloroethylene |
(0.05-2 %v) |
134SH |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Triethyl Amine |
(1-20 ppm) |
213S |
10 |
3 years |
|
|
| Triethyl Amine |
(1-20 ppm) |
222S |
10 |
3 Years |
|
|
| |
|
|
|
|
|
|
| 1.2,4-Trimethyl Benzene |
(10-250 ppm) |
111U |
10 |
2 Years |
|
|
|
|
| Vinyl Acetate |
(5-120 ppm) |
237S |
10 |
2 Years |
|
|
| |
|
|
|
|
|
|
| Vinyl Chloride |
(0.05-1 %v) |
132SA |
10 |
3 Years |
|
|
| Vinyl Chloride |
(5-500 ppm) |
132SB |
5 |
1.5 Years † |
|
|
| Vinyl Chloride |
(0.1-12 ppm) |
132SC |
5 |
3 Years |
|
|
|
|
| Water Vapor |
(1.7-33.8 mg/l) |
177SA |
10 |
3 Years |
|
|
| Water Vapor |
(0.05-2.0 mg/l) |
177U |
10 |
3 Years |
|
|
| Water Vapor |
(3-80 lb/MMCF) |
177UL |
10 |
3 Years |
|
|
| Water Vapor |
(2-12 lb/MMCF) |
177UR |
10 |
3 Years |
|
|
|
|
| Xylene |
(5-1000 ppm) |
143SA |
10 |
2 Years |
|
|
| Xylene |
(5-200 ppm) |
143SB |
10 |
2 Years |
|
|
|
|
Time-Weighted
Average (TWA) Detector Tubes
|
| Ammonia (TWA) |
(5-200 ppm) |
501-TWA |
10 |
1 Year |
|
|
| Carbon Monoxide (TWA) |
(5-400 ppm) |
500-TWA |
10 |
3 Years |
|
|
| Hydrogen Sulfide (TWA) |
(1-20 ppm) |
502-TWA |
10 |
1 Year |
|
|
| Sulfur Dioxide (TWA) |
(0.5-20 ppm) |
503-TWA |
10 |
3 Years |
|
|
| Toluene (TWA) |
(20-200 ppm) |
504-TWA |
10 |
3 Years |
|
|
|
|
Dissolved
Substance Detector Tubes (ION Tubes)
|
| Chloride Ion |
(10-2000 ppm) |
201SA |
10 |
3 Years |
|
|
| Chloride Ion |
(3-200 ppm) |
201SB |
10 |
2 Years |
|
|
| Copper Ion |
(1-100 ppm) |
203S |
10 |
1 Year |
|
|
| Cyanide Ion |
(0.2-5 ppm) |
204S |
10 |
2 Years |
|
|
| Chlorine (free residual) |
(0.4-5 ppm) |
234SA |
10 |
2 Years |
|
|
| Iron Ion |
(50-400 ppm) |
202 |
10 |
1 Year |
|
|
| Salinity |
(0.01-0.8 %v) |
205SL |
10 |
2 Years |
|
|
| Sulfide Ion |
(2-1000 ppm) |
200SA |
10 |
1 Year |
|
|
| Sulfide Ion |
(0.5-10 ppm) |
200SB |
10 |
2 Years |
|
|
|
|
Compressed
Breathing Air Test Tubes
|
| Carbon Monoxide Compressed Breathing Air Tube |
(5-100 ppm) |
600SP |
10 |
2 Years |
|
|
| Carbon Dioxide Compressed Breathing Air Tube |
(100-3000 ppm) |
601SP |
10 |
2 Years |
|
|
| Oil Mist Compressed Breathing Air Tube |
(0.3-5 mg/M3) |
602SP |
10 |
2 Years |
|
|
| Water Vapor Compressed Breathing Air Tube |
(20-160 mg/M3) |
603SPA |
10 |
2 Years |
|
|
| Oxygen Compressed Breathing Air Tube |
(2-24 %v) |
604SP |
10 |
2 Years |
|
|
|
|
Smoke
Tubes and Kits
|
| Smoke Tubes (box of 10) |
Stannic Chloride |
5100 |
10 |
5 Years |
|
|
| RespiFitｪ Respiratory Qualitative Fit Test Kit |
7013304-1
|
|
|
| Air Flow Indicator (HVAC) Kit |
7014094
|
|
|
| Tubing Kit |
7013311
|
|
|
| Aspirator Bulb |
7017471
|
|
|
| Tube Tip Breaker (package of 5) |
7015377P
|
|
|
| Pump Kit/RespiFit Kit Carrying Bag (Standard Canvas) |
7013586 |
|
|
| Carrying Pouch |
7014093
|
|
|
|
|
Pump
Kits, Spares and Accessories
|

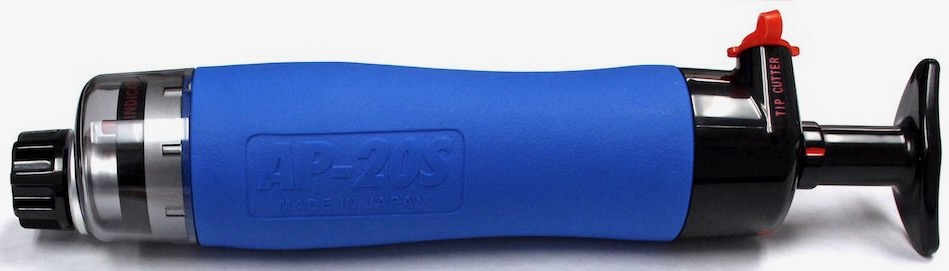

| Model AP-20S Gas Detection Pump Kit
|
830-0001-01
|
|
|
| Extension Hose (5 meter) for AP-20S pump
|
830-1001-01
|
|
|
| Extension Hose (10 meter) for AP-20S pump
|
830-1002-01
|
|
|
| Telescoping Extension Probe (to 3 meters)
for AP-20S pump
|
830-1003-01
|
|
|
| Tube Holder (Rubber Inlet Flange) for AP-20S
pump [each]
|
830-1005-01
|
|
|
| Model AP-20S Gas Detection Pump Instruction
Manual
|
360-0027-01
|
|
|
| Grease
|
41580020
|
|
|
| Sensidyne Detector Tube System Handbook
|
7013584
|
|
|
|
|
| Deluxe Hazmat III Kit
|
7013627
|
|
|
| Deluxe Hazmat III Kit (without tubes)
|
7013795
|
|
|
| Hazmat III Color Testing Chart
|
7013628
|
|
|
| Hazmat Upgrade Kit: Deluxe I or Deluxe
II to Deluxe III
|
7013629
|
|
|
Deluxe Hazmat Case (with
inserts) |
7015574-1
|
|
|
|
| Pipeline Sampler Kit |
7011364-1 |
|
|
|
Compressed Breathing
Air Analysis |
| CBA Analysis Kit (Up To 3000 psi) |
7015406 |
|
|
| CBA Retrofit Kit |
7013911 |
|
|
| CBA Oxygen Accessories Kit (includes syringe &
connection tubing) |
7013920 |
|
|
| CBA Tube Holder |
7013783 |
|
|
| CBA Manual |
7015406-0 |
|
|
|
Parts
for the old AP-1S Piston Pump |
| Extension Hose (5 meter) for AP-1S pump |
7013596 |
|
|
| Extension Hose (10 meter) for AP-1S pump |
7013597 |
|
|
| Telescoping Extension Probe (to 3 meters)
for AP-1S pump |
7013598 |
|
|
| One Hand Adapter (Allows one-hand pump
activation) for AP-1S pump |
7013600 |
|
|
| Tube Holder (Rubber Inlet Flange) for AP-1S
pump [each] |
7013606-002 |
|
|
| Detector Tube Training Video (shows AP-1S
pump) |
7013823 |
|
|
|
Miscellaneous
Parts |
| Deluxe Tube Tip cutter |
7013601 |
|
|
| Hot Probe |
7013602 |
|
|
| Rubber Bulb for Tube Nos. 203S & 204S |
7013800 |
|
|
| Fit Adapter for Tube No. 120UT |
7013825 |
|
|
| Shoulder Bag |
7013824 |
|
|
