Dräger Xact® 5000 Automatic Dräger Tube Pump

   - New Pump Concept
   - Simplicity of Operation
   - Automatic Transfer of Measurement Parameters
   - Measurement in Technical Gases
   - Direct Settings for Sampling

The Dräger Xact 5000 introduces a new era of gas measurement: Only one device is necessary for
measuring and sampling. The automatic tube pump is compatible with Dräger shortterm tubes as well as
sampling tubes and systems. The robust housing supports the use of the pump to perform the daily
measuring tasks under tough conditions. The components of the pump are corrosion resistant and the
pump is additionally equipped with an user replaceable filter which traps sulfur trioxide aerosols
protecting the pump for up to two years. The display is backlit to enable use of the pump under poor
lighting conditions. All Dräger shortterm tubes and accessories can be used with the Dräger Xact 5000.
The IS approved Dräger Xact 5000 can be used for confined space applications and in explosive gas
atmospheres – always ready wherever fast and reliable onsite measurements are required.

NEW PUMP CONCEPT

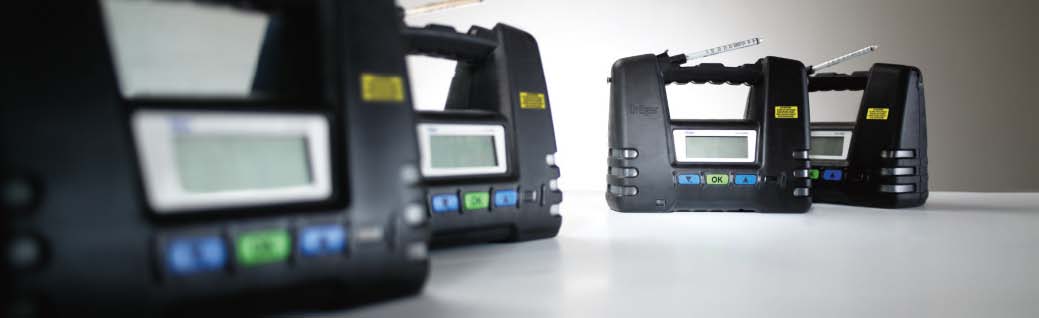

Drager X-act® 5000

The Dräger Xact 5000 is based on a completely new pump concept. The key principle is the ability to
provide the required flow characteristics of the Dräger shortterm tubes, while also providing the option to
be used with sampling tubes and systems requiring constant flow. Compared to the Dräger accuro hand
pump, this new concept reduces the average measurement time of the Dräger shortterm tubes in case
of a high number of strokes. The internal pump is also designed to use extension hoses up to a length
of 30 meters (98 ft.).

SIMPLICITY OF OPERATION

The handling of gases, vapors and aerosols has never been easier. The automatic tube pump, Dräger
Xact 5000, directs the air to be measured through the appropriate DrägerTubes effortlessly. It is

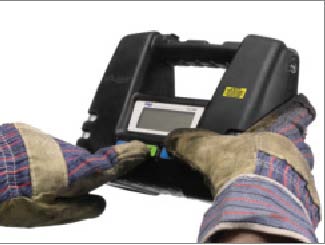

comfortably carried with one hand or using the shoulder strap and is easily operated, even wearing
protective gloves. A simple and intuitive menu structure provides the user efficient operation with just a
few button presses. Using the password-protected menu repetitive operating modes can be set.

AUTOMATIC TRANSFER OF MEASUREMENT PARAMETERS

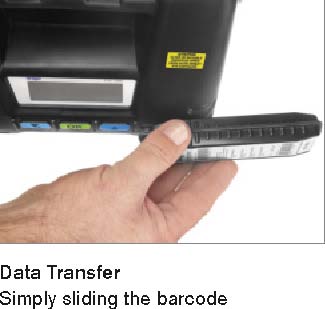

A barcode printed on the label on the backside of a Dräger shortterm tube box contains all relevant
measurement parameters. Simply sliding the barcode over the barcode reader of the pump,
automatically transfers the name of the substance to be measured, the number of strokes, and the
measuring range to the display. The required steps to carry out the steps to carry out the measurement
are simplified with the Dräger Xact 5000 and the possibility of making an error is reduced to a minimum.

MEASUREMENT IN TECHNICAL GASES

Dräger shortterm tubes are calibrated for measurements in ambient air. To evaluate measurements in
technical gases, the properties of the technical gas must be taken into consideration. Technical gases
have a different viscosity than ambient air. Therefore, the flow of the pump must be set accordingly.
Following the operating steps in the mode „Measurement in Technical Gases“, the Dräger Xact 5000 will
automatically be adjusted to the required flow parameter and the measurement result can be read
directly.

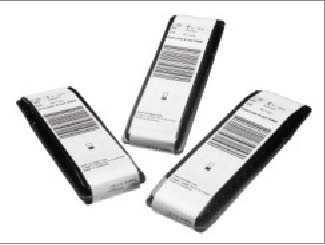

Barcode printed on the label

DIRECT SETTINGS FOR SAMPLING

Depending on the sampling tubes or systems, the required parameters for the test can be set directly,
without the need for an external flowmeter. The Dräger Xact 5000 automatically adjusts the flowrate.
After setting the sampling time the pump can immediately be started. At the end of the measurement
the pump will stop automatically. The set data, the elapsed time and the pumped volume will be
indicated on the display.

TECHNICAL DATA

Operation
Short-term measurements	using Dräger short-term tubes
	Number of strokes	adjustable, 1 to 199 strokes
	Stroke volume	100 mL
Sample taking	Flow rate range	0.1 to 2.0 L/min
		Resolution 0.1 to 1.0 L/min: 0.1 L/min ±5%
		Resolution 0.1 to 2.0 L/min: 0.2 L/min ±5%
	Sampling time	adjustable up to 12 hours depending on flow rate
		Resolution in steps of 15 minutes (default) or 1 minute
Display	two parts: segment and matrix
Menu languages	Danish,Dutch,English,Finnish,French,German,Italian,Norwegian,Polish,Spanish,Swedish
Use of extension hose	up to 30 meter (98 ft)
Dimensions (H x W x D)	approx. 175 x 230 x 108 mm (7" x 9" x 4.25")
Weight (without battery pack)	approx. 1.6 kg (3.5 lbs)

Ambient Conditions
Temperature during storage	-20 to 55 °C (-4 to131 °F)
Temperature during operation	5 to 40 °C (41 to104 °F)
Humidity	0 to 95% r. h., non-condensing
Pressure	700 to 1300 hPa (10.2 to18.9 psi)

Power Packs
Rechargeable Battery NiMH, T4	7.2 V, 1500 mAh (charging time < 4 hours)
Alkaline Battery Pack, T4	6 AA cells, (see battery pack label for approved battery types)
Battery capacity at 25 °C (77 °F)	Dräger short-term tubes: >1,000 strokes
	Sample taking: up to 12 hours, depending on adjusted flow rate

Approvals
ATEX	EX ia llC T4 Ga
	Ex ia l Ma
	l M 1 / ll 1G
MED	Steering Wheel approval pending
UL	Class l, Div. 1, Group A, B, C, D
	Class ll, Div. 1, Group F, G
	0°C
cUL	Class l, Div. 1, Group A, B, C, D
	Class ll, Div. 1, Group F, G
	0°C
IECEx	Ex ia llC T4 Ga
CE-mark	according to 2004/108/EC and 94/9/EC

Barcode reader
The Dräger X-act 5000 has a built-in barcode reader which emits an invisible laser beam during normal operation.
The Dräger X-act 5000 is a Class 1M LASER Product with Class 3R internal radiation per the requirements of IEC 60825-1 Edition 2.0 (2007).
INVISIBLE LASER RADIATION • DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS • CLASS 1M LASER PRODUCT
Viewing the laser output with certain optical instruments (for example, eye loupes, magnifiers and microscopes) within a distance of 100 mm may pose an eye hazard.
